    Custom Austenitic Stainless Small Diameter Seamless Steel Tubes GB/T 3090

    Ask Lasest Price
    Brand Name : TORICH
    Model Number : GB/T 3090
    Certification : ISO 9001 ISO 14001 TS 16949
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Ton/Year
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    Custom Austenitic Stainless Small Diameter Seamless Steel Tubes GB/T 3090

    Austenitic Stainless Small Diameter Seamless Steel Tubes GB/T 3090


    Spec:

    Material:SUS 304/316 ASTM 304/316/321 EN 1.4301/1.4541/1.4404 etc

    Size Range:OD:0.4-12mm

    WT:0.1-2mm

    General Length:0.5-4m


    Tolerance:

    According to the following tables or customers’ request.


    Chemical composition

    Steel gradeChemical composition,%
    CSiMnPSNiCrMoTi
    0Cr18Ni90.071.002.000.0350.0308.00~11.0017.00~19.00


    00Cr19Ni10≤0.031.002.000.0350.0308.00~12.0018.00~20.00


    0Cr18Ni10Ti≤0.081.002.000.0350.0309.00~12.0017.00~19.00

    >5C%
    0Cr17Ni12Mo2≤0.081.002.000.0350.03010.00~14.0016.00~18.502.00~3.00

    00Cr17Ni14Mo2≤0.031.002.000.0350.03012.00~15.0016.00~18.002.00~3.00

    1Cr18Ni9Ti≤0.121.002.000.0350.0308.00~11.0017.00~19.00

    5(C%-0.02~0.80)

    Mechanical properties

    Steel gradeRecommended heat treatment systemTensile strength N/mm²(Mpa)Elongation A%Kg/dm³
    No less than
    0Cr18Ni91010~1150520357.93
    00Cr19Ni101010~1150480357.93
    0Cr18Ni10Ti920~1150520357.95
    0Cr17Ni12Mo21010~1150520357.90
    00Cr17Ni14Mo21010~1150480357.98
    1Cr18Ni9Ti100~1100520357.90
    Note: Elongation shall be no less than 25% for tubes OD less than 3.2mm or WT less than 0.30mm

    Characteristic:

    Good concentricity

    Good OD and ID tolerance

    High Precision

    Stable quality

    Smooth Roughness

    TORICH QUALITY ASSURANCE


    Processing:

    Seamless and Welded

    RAW MATERIAL

    INCOMING INSPECTION

    STORAGE CUTTINGHAMMERING PICKING LUBRICATION CLEANING PHOSPHORI CLEAN

    ENDS CUTTING←STRAIGHTENING←HEAT TREATMENT↔MIDDLLE CHECK↔ COLD DRAWING ← LUBRICATING

    FINAL INSPECTION→BUNDING→STORAGE


    Technical Delivery Conditions:Usually delivered in BK or according to customer's request


    Widely used in the field of:

    Aerospace

    Electronics

    Scientific research

    Chemical industry

    Medical apparatus

    Instrument areas


    Product Images:

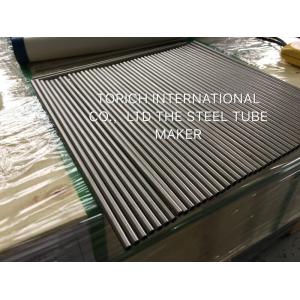

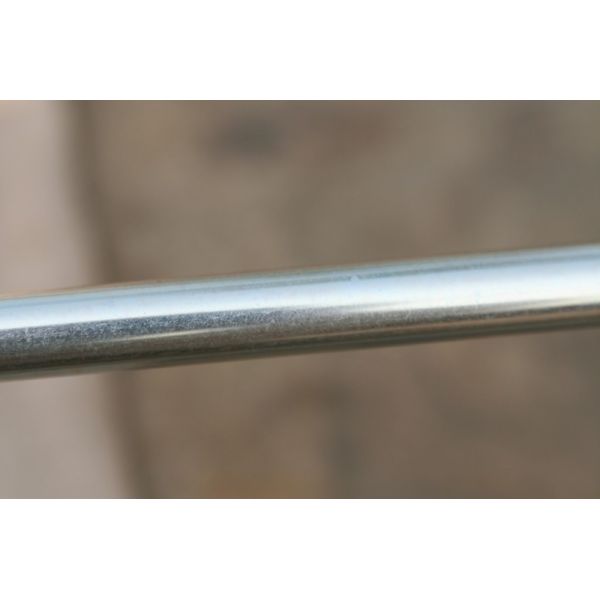

    Custom Austenitic Stainless Small Diameter Seamless Steel Tubes GB/T 3090Custom Austenitic Stainless Small Diameter Seamless Steel Tubes GB/T 3090Custom Austenitic Stainless Small Diameter Seamless Steel Tubes GB/T 3090Custom Austenitic Stainless Small Diameter Seamless Steel Tubes GB/T 3090
