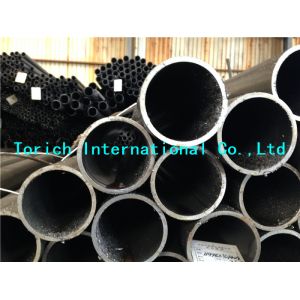

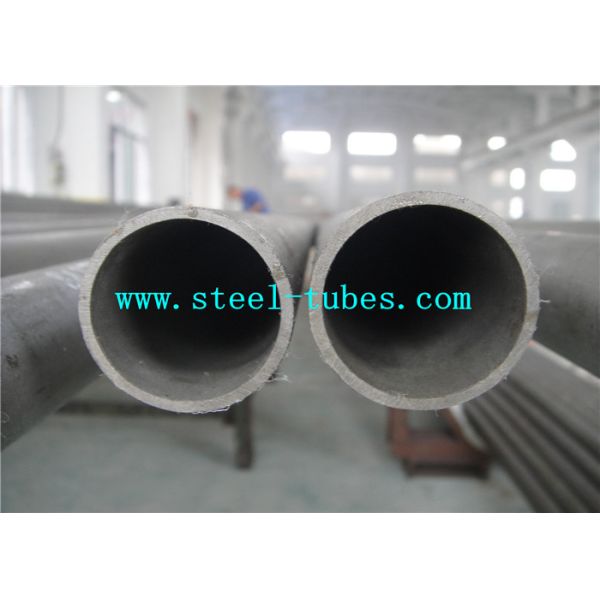

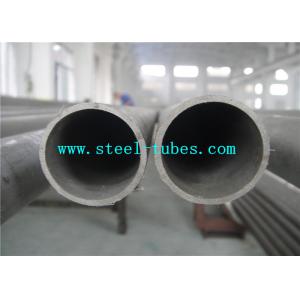

    ASTM A672 Steel Boiler Tube For High Pressure Service

    Ask Lasest Price
    Brand Name : TORICH
    Model Number : ASTM A672
    Certification : ISO9001, ISO14001, TS16949
    Price : USD1000-1300/ton
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 35-45days
    • Product Details
    • Company Profile

    ASTM A672 Steel Boiler Tube For High Pressure Service

    ASTM A672 Heat Exchanger Boiler Steel Tube for High Pressure Service

    Size Range

    OD≥400mm

    WT≤75mm


    Plate Specification

    Pipe GradeType of SteelASTM Specification
    No.Grade
    A45plate carbonA285/A285MA
    A50plate carbonA285/A285MB
    A55plate carbonA285/A285MC
    B60plate carbon, killedA515/A515M60
    B65plate carbon, killedA515/A515M65
    B70plate carbon, killedA515/A515M70
    C55plate carbon, killed,fine grainA516/A516M55
    C60plate carbon, killed,fine grainA516/A516M60
    C65plate carbon, killed,fine grainA516/A516M65
    C70plate carbon, killed,fine grainA516/A516M70
    D70manganese-silicon-normalizedA537/A537MCl-1
    D80manganese-silicon-Q&TA537/A537MCl-2
    H75manganese-molybdenum-normalizedA302/A302MA
    H80manganese-molybdenum-normalizedA302/A302MB,C or D
    J80manganese-molybdenum-Q&TA533/A533MCl-1B
    J90manganese-molybdenum-Q&TA533/A533MCl-2B
    J100manganese-molybdenum-Q&TA533/A533MCl-3B
    L65molybdenumA204/A204MA
    L70molybdenumA204/A204MB
    L75molybdenumA204/A204MC
    N75manganese-siliconA299/A299MA

    Tests

    Tension Test, Transverse-Guided-Welded-Bend Tests, Pressure Test


    Referenced Documents

    ASTM Standards:

    A20/A20M Specification for General Requirements for Steel Plates for Pressure Vessels

    A370 Test Methods and Definitions for Mechanical Testing of Steel Products

    A435/A435M Specification for Straight-Beam Ultrasonic Examination of Steel Plates

    A530/A530M Specification for General Requirements for Specialized Carbon and Alloy Steel Pipe

    A5771A577M Specification for Ultrasonic Angle-Beam Examination of Steel Plates

    A578/A578M Specification for Straight-Beam Ultrasonic Examination of Rolled Steel Plates for Special Applications

    E109 Method for Dry Powder Magnetic Particle Inspection; Replaced by E 709 (Withdrawn 1981)4

    E138 Method for Wet Magnetic Particle Inspection; Replaced by E 709 (Withdrawn 1981)4

    E110 Test Method for Indentation Hardness of Metallic Materials by Portable Hardness Testers

    E165 Practice for Liquid Penetrant Examination for General Industry

    E709 Guide for Magnetic Particle Testing

    2.1.1 Plate Steel Specifications (Table 1)

    A204/A204M Specification for Pressure Vessel Plates, Alloy Steel, Molybdenum

    A285/A285M Specification for Pressure Vessel Plates, Carbon Steel, Low- and Intermediate-Tensile Strength

    A299/A299M Specification for Pressure Vessel Plates, Carbon Steel, Manganese Silicon

    A302/A302M Specification for Pressure Vessel Plates, Alloy Steel,Manganese-MolybdenumandManganese-Molybdenum-Nickel

    A515/A515M Specification for Pressure Vessel Plates, Carbon Steel, for Intermediate and Higher-Temperature Service

    A516/A516M Specification for Pressure Vessel Plates, Carbon Steel, for Moderate- and Lower-Temperature Service

    A533/A533M Specification for Pressure Vessel Plates, Alloy Steel, Quenched and Tempered, Manganese-Molybdenum and Manganese-Molybdenum-Nickel

    A537/A537M Specification for Pressure Vessel Plates, Heat-Treated, Carbon-Manganese Silicon Steel


    Supplementary requirements

    1. Tension and Bend Tests

    2. Charpy V-Notch Test (For pipe with nominal wall thickness of 1/2 in. [13mm] and greater)

    3. Hardness Test

    4. Product Analysis

    5. Metallography

    6. Magnetic Particle Examination of Base Metal

    7. Magnetic Particle Examination of Weld Metal

    8. Liquid Penetrant Examination of Base Metal

    9. Liquid Penetrant Examination of Weld Metal

    10. Straight Beam Ultrasonic Examination of Flat Plate-UT1

    11. Straight Beam Ultrasonic Examination of Flat Plate-UT2

    12. Angle-Beam Ultrasonic Examination (Plate Less than 2 in.[50mm] Thick)-UT3


    ASTM A672 Steel Boiler Tube For High Pressure ServiceASTM A672 Steel Boiler Tube For High Pressure Service
